3K Twill Matt Glossy Pultruded Carbon Fiber Tube 100mm

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: T STAR

Model Number:: CRP-2A

Application:: Carrier Of Chemical Activator

Shape:: Carbon Fiber Tube

Dimensions:: Cusomized sizes

Product Type:: Carbon Fiber

C Content (%):: 100%

Working Temperature:: 200

S Content (%):: 0.005%

N Content (%):: 0.001%

H Content (%):: O.1

Ash Content (%):: 0.25 <0.5%

Volatile:: Non-volatile

Product Name:: 3K Twill Matt Glossy Pultruded Carbon Fiber Tube 100mm

Material:: 100% Carbon Fiber

Color:: Black

Size:: Customzied

Density:: 1.5g/cm3

Surface:: 1K, 1.5K, 2K, 3K, 6K, 12K, 24K ,twill/plain/UD/OPP, glossy/matte

Feature:: High Strength,Light Weight

ODM,OEM:: Yes

Certificate:: ISO9001, SGS, ROHS

Logo:: Yes

Product Description

3K Twill Matt Glossy Pultruded Carbon Fiber Tube

Using a full wrap of 3K filament fabric and Unidirectional Fabrics, and a clear epoxy coat for a fine gloss finish for clean airflow. Can be used for widely diverse applications, for example in frames and stands, as well as robot arms and measurement set-ups.Carbon Fiber tubes are available in standard lengths of 1000 or 2000m m and thicknesses Can be customized . We can also shorten the tubes to our customers’ requirements.

Available Sizes:

NO.	ID (mm)	NO.	ID(mm)	NO.	ID(mm)	NO.	ID(mm)	NO.	ID(mm)
1	3.48	38	15.5	75	25.3	112	38.5	149	74
2	4	39	16	76	25.4	113	39	150	76.2
3	5	40	16.7	77	25.5	114	40	151	77
4	5.5	41	17	78	26	115	42	152	80
5	6	42	17.9	79	26.2	116	43	153	82
6	6.3	43	18	80	26.4	117	43.8	154	84
7	6.4	44	18.4	81	26.4	118	45	155	87
8	7	45	18.5	82	26.83	119	46	156	87.5
9	7.5	46	18.8	83	26.7	120	46.5	157	89
10	8	47	19	84	27	121	48	158	89
11	8.12	48	19.5	85	27.5	122	48.8	159	89.25
12	8.3	49	19.5	86	27.8	123	49.2	160	90
13	8.4	50	20	87	27.9	124	50	161	92.8
14	8.55	51	20.2	88	28	125	51	162	93
15	8.56	52	20.4	89	28.4	126	51.8	163	95
16	8.7	53	20.6	90	29	127	52	164	96
17	9	54	20.8	91	29.4	128	52.6	165	98
18	9.5	55	21	92	29.5	129	53	166	98.75
19	10	56	21.3	93	30	130	54	167	101.6
20	10.6	57	21.5	94	30.5	131	54.35	168	104
21	10.5	58	21.6	95	32	132	54.4	169	110
22	10.45	59	21.9	96	32.5	133	54.5	170	100.4
23	10.7	60	22	97	33	134	55.15	171	120.2
24	10.7	61	22.3	98	33.7	135	56	172	125
25	11	62	22.5	99	34	136	57	173	126
26	11.5	63	22.7	100	34.4	137	57.5	174	128
27	12	64	23	101	34.5	138	58	175	129
28	12.6	65	23.1	102	34.6	139	60	176	150
29	12.5	66	23.4	103	34.8	140	61	177	151
30	12.2	67	23.5	104	35	141	64.2	178	158
31	13	68	23.6	105	35.2	142	66	179	166
32	13.1	69	23.8	106	36	143	66.8	180	174
33	14	70	24	107	36.6	144	67.5	181	182
34	14.4	71	24	108	36.9	145	68.81
35	14.6	72	24.3	109	37.2	146	69
36	14.8	73	24.8	110	37.4	147	69
37	15	74	25	111	38	148	73

If you need other sizes ,please kindly inform us ,we can produce per your reuqets,thanks.

Advantage:

1. High strength (5 times of steel)
2.Good heat resistance, can tolerate high temperature above 2000 ℃)
3. Excellent thermal shock resistance
4. Low thermal expansion coefficient (small deformation)
5. Small heat capacity (energy saving)
6. Small proportion (1/5 of steel)
7. Excellent anti-corrosion and radiation performance

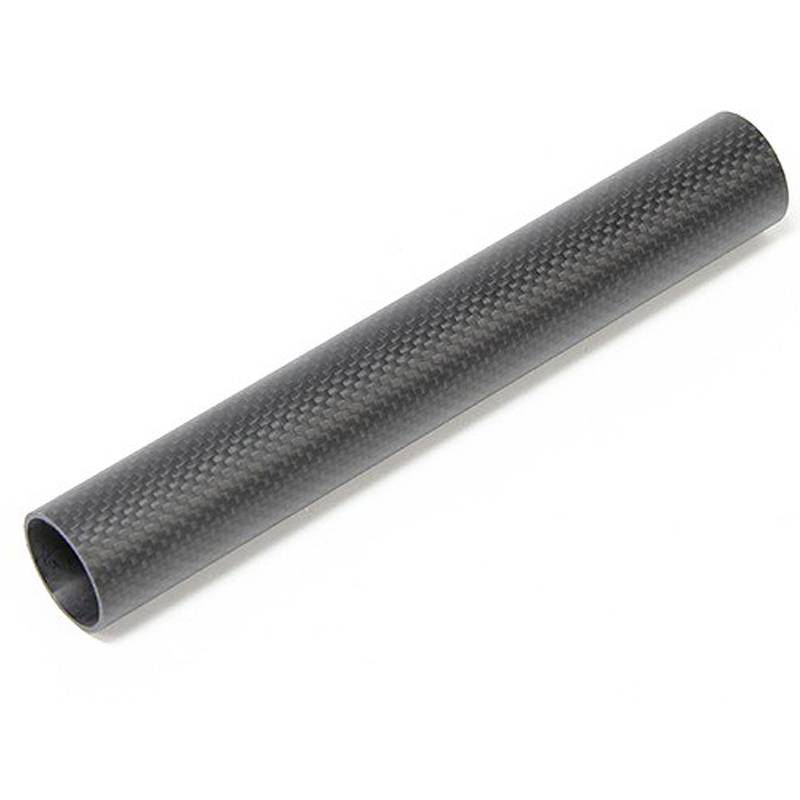

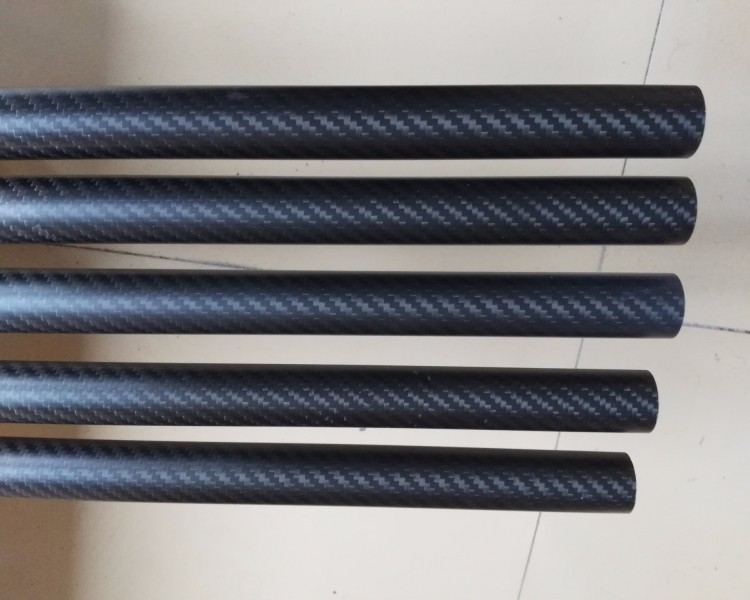

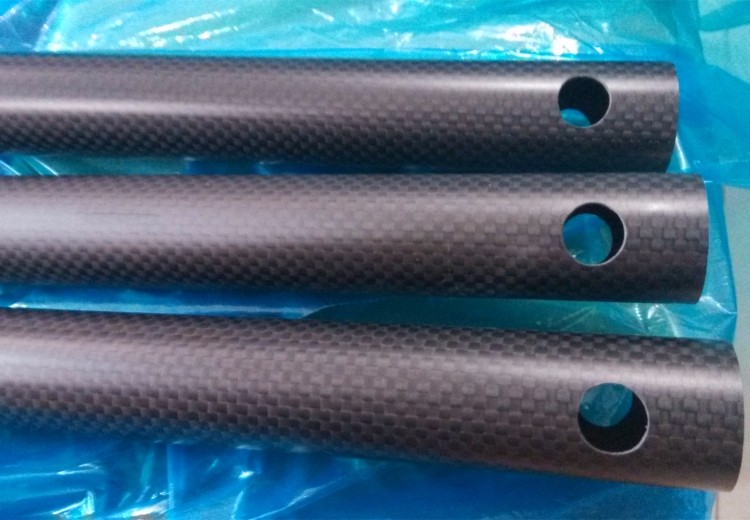

Detailed Images
